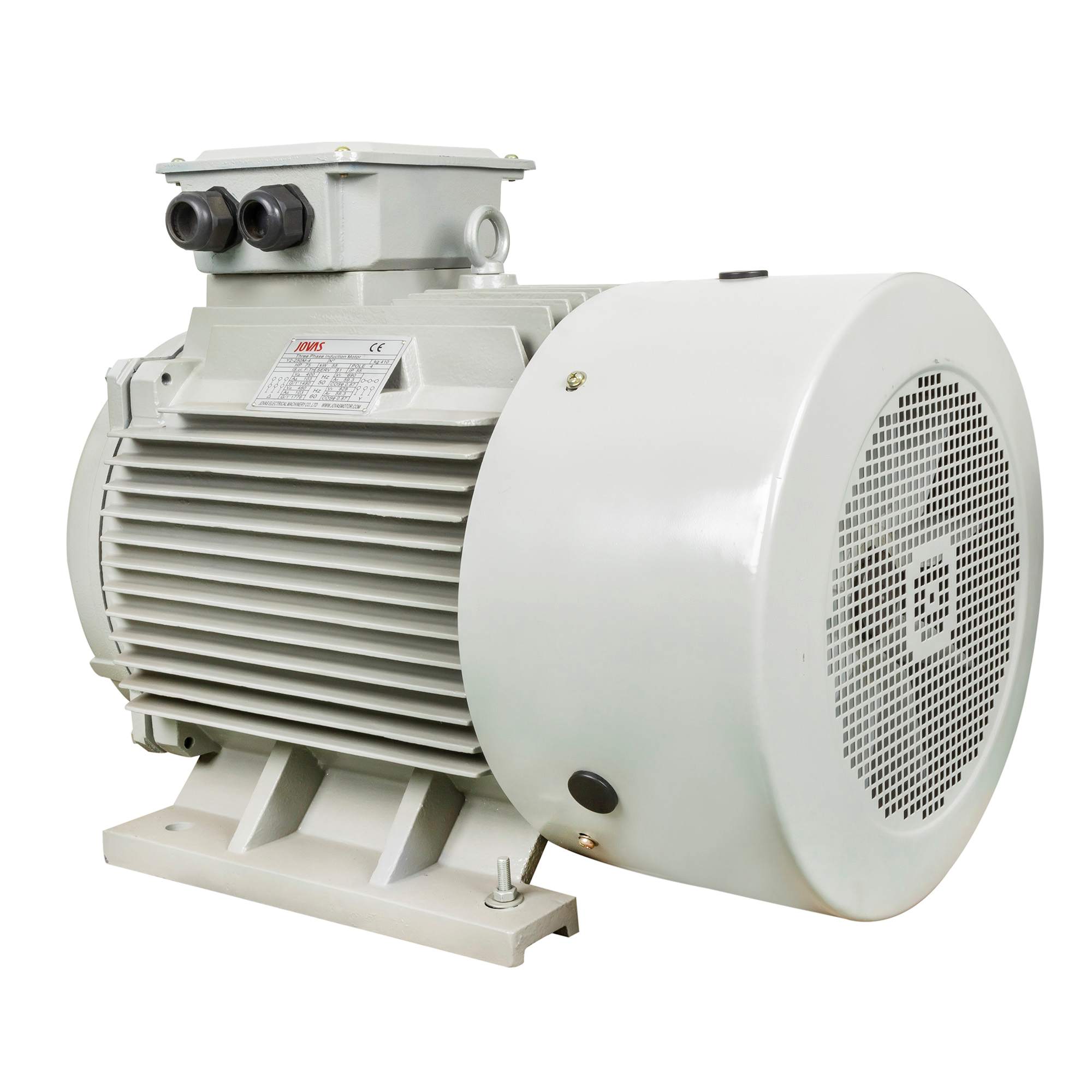

YE3(IE3) Three Phase Cast Iron Motor

Adopting the national uniform design ,YE3(IE3) series three - phase induction motor are conformity with IEC34 - 1.It possess sophisticated features such as new construction , good appearance , slight vibration , low noise etc.

Frame Size (mm) :
71-355
Output Power (kW) :
0.18-355
Rated Voltage (V) :
380V or any voltage between 220V - 760V
Frequency (Hz) :
50/60
Speed (r/m) :
800/1000/1500/3000
Number of Poles :
2.4.6.8
Mounting :
B3.B14.B5.B34.B35
Protection Class :
IP44 / IP54 / IP55
Insulation Class :
B / F / H
Temperature Rise :
B
Duty :
S1 (continuous)
Cooling Method :
ICO141

Inquiry now Download

product introduction

Adopting the national uniform design ,YE3(IE3) series three - phase induction motor are conformity with IEC34 - 1 .It possess sophisticated features such as new construction , good appearance , slight vibration , low noise etc.
Protection class ：IP55 or above
Insulation class ：F / H
Cooling method ：ICO141

YE3(IE3) Three Phase Cast Iron Motor Operating conditions:
Ambient temperature ： -15℃≤~≤40℃
Altitude ：not exceed 1000 m
Rated voltage ：380V or any voltage between 220V - 760V
Duty : S1 (continuous)
Connection :Star - connection for up to 3KW , delta - connection for 4KW and above

These features make the YE3 (IE3) series motors highly efficient, reliable, and suitable for a wide range of industrial and commercial applications.

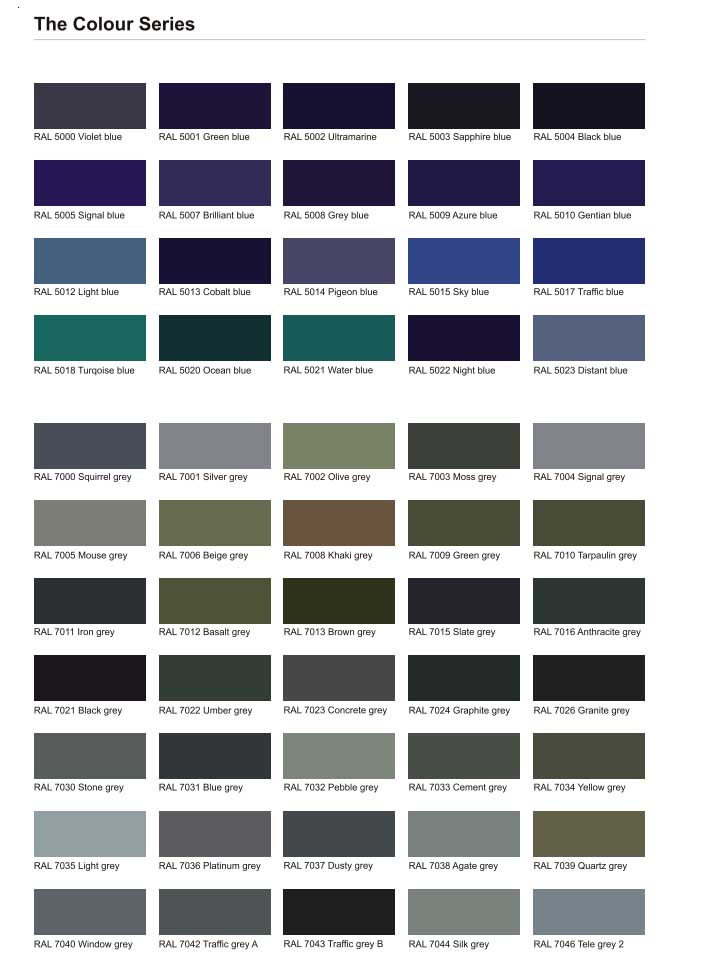

Motors are available in a wide range of colours

Motors are available in a wide range of colours
