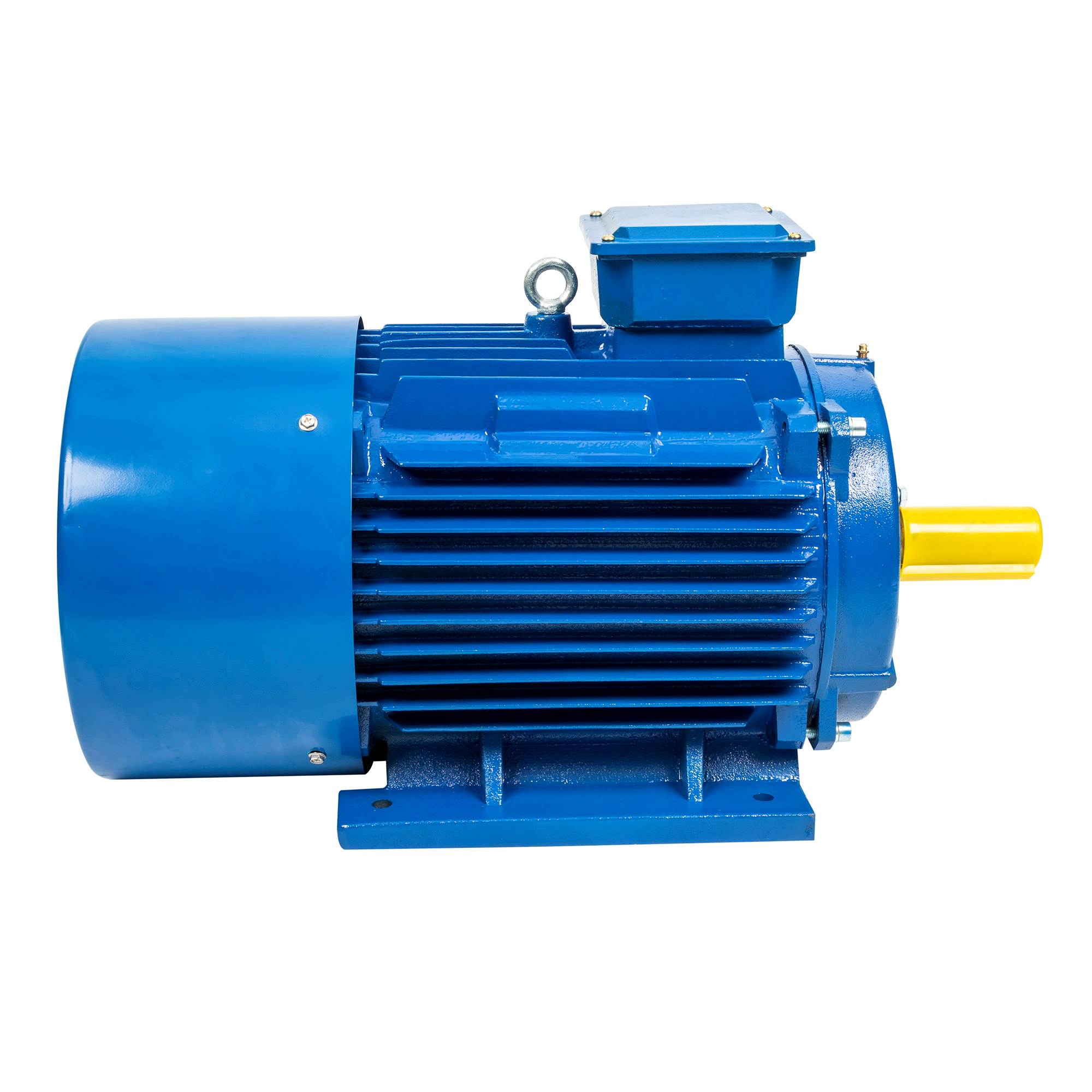

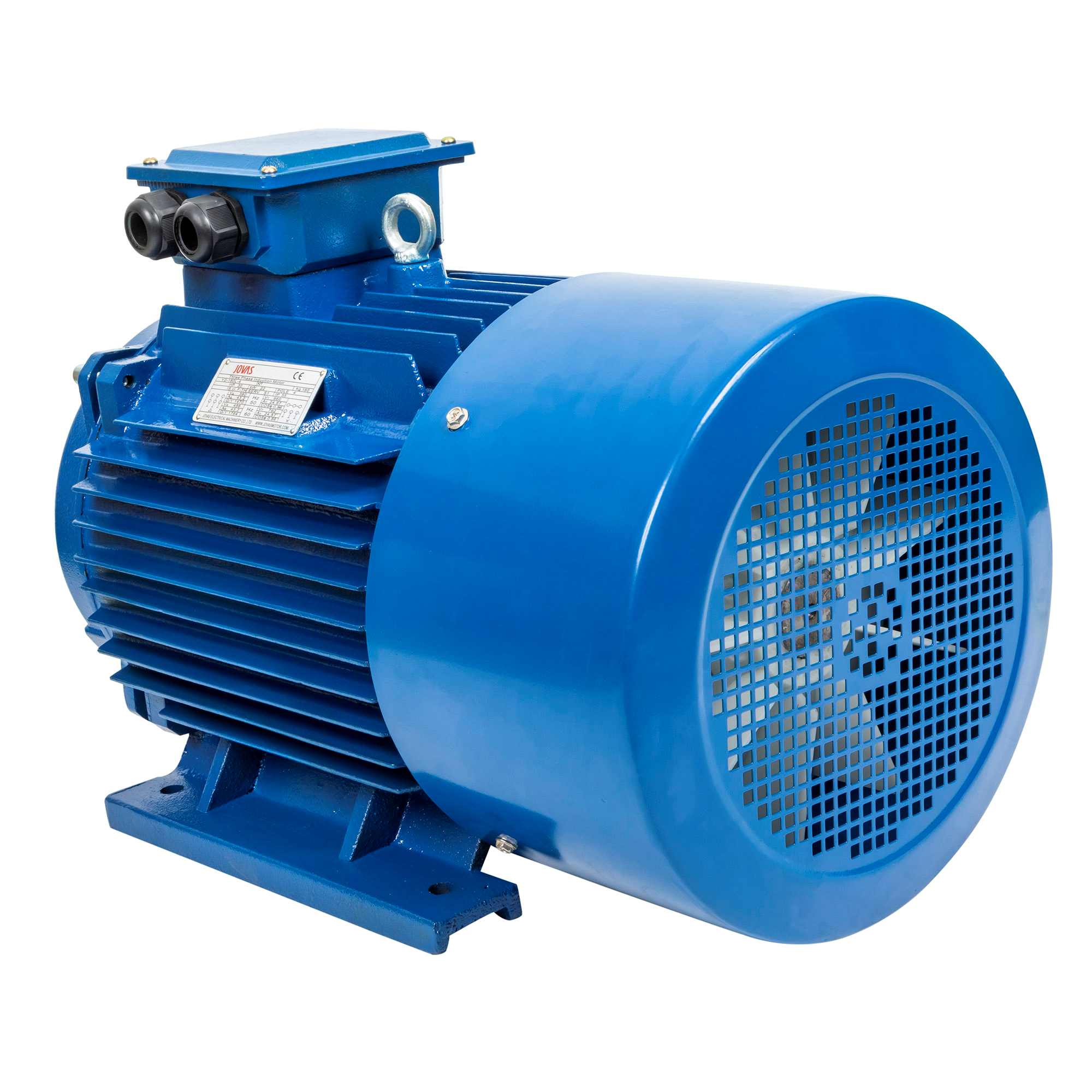

YE2(IE2) Three Phase Cast Iron Motor

YE2(IE2) Three Phase Cast Iron Motor

Adopting the national uniform design ,YE2(IE2) series three - phase induction motor are conformity with IEC34 - 1. It possess sophisticated features such as new construction , good appearance , slight vibration , low noise etc.
Protection class ：IP55 or above
Insulation class ：F / H
Cooling method ：ICO141

YE2(IE2) Three Phase Cast Iron Motor Operating conditions:
Ambient temperature ： -15℃≤~≤40℃
Altitude ：not exceed 1000 m
Rated voltage ：380V or any voltage between 220V - 760V
Duty : S1 (continuous)
Connection :Star - connection for up to 3KW , delta - connection for 4KW and above

YE2(IE2) Three Phase Cast Iron Motor Maintenance Tips:

1. Regularly inspect the motor for signs of wear or damage.

2. Keep the motor clean and free from dust or debris.

3. Check electrical connections and insulation periodically to ensure proper operation.

4. Lubricate bearings as needed to reduce friction and extend motor life.

5. Monitor operating temperature to prevent overheating.

The YE2 (IE2) Series Three-Phase Induction Motors are a reliable and efficient choice for a wide range of industrial and commercial applications. Their compliance with international standards, high efficiency, and modern design make them a preferred option for users seeking energy-saving and durable motor solutions.
