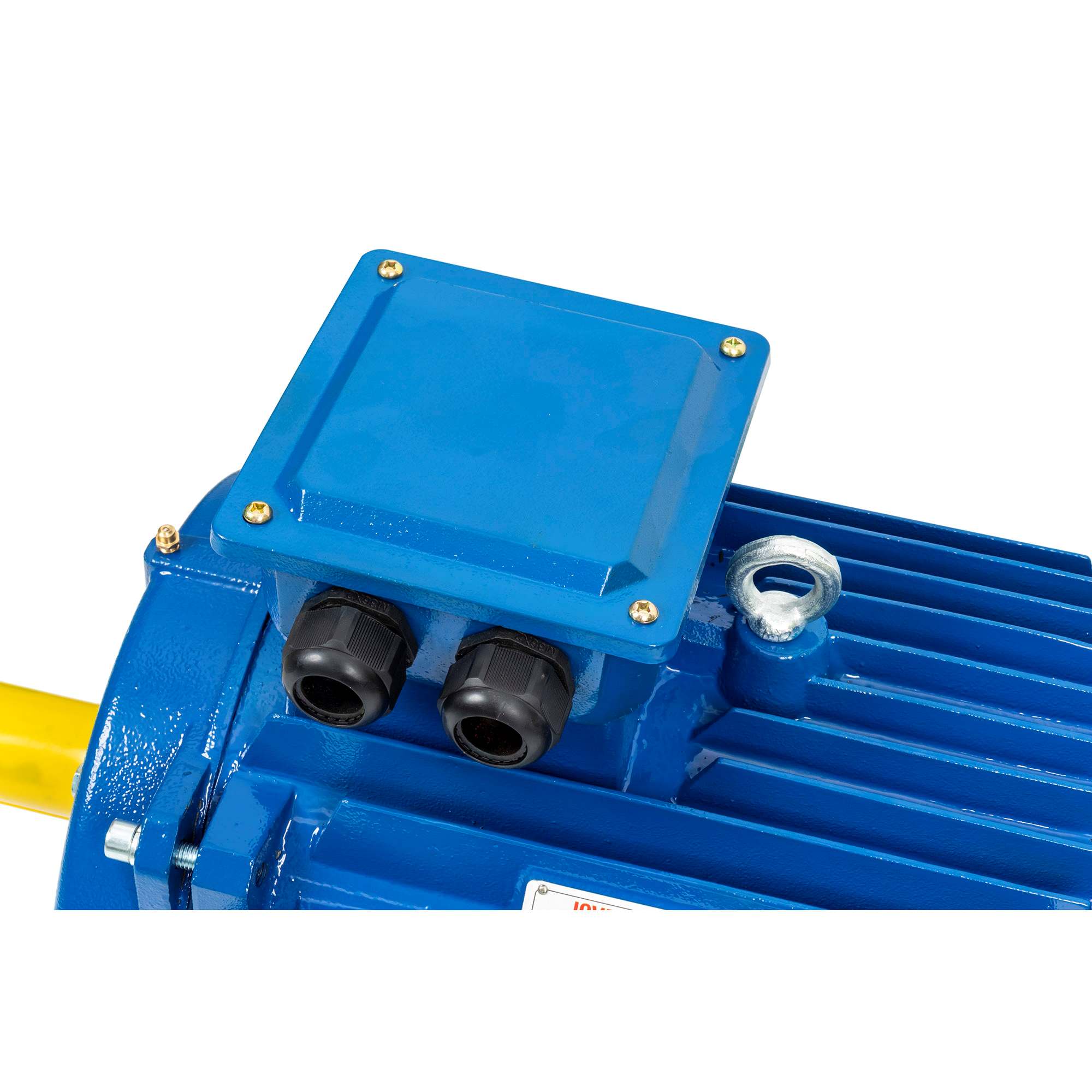

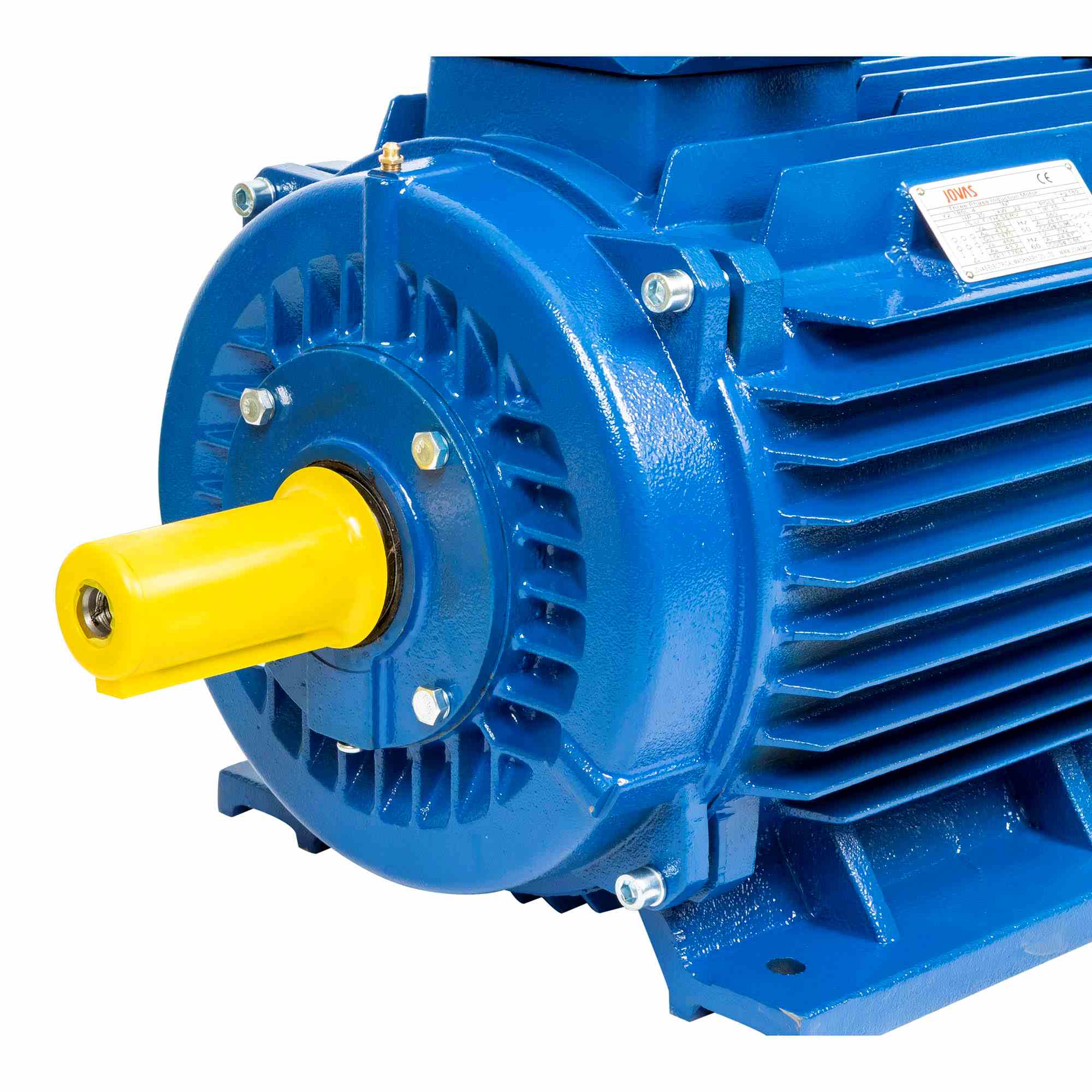

Y2 Three Phase Cast Iron Motor

Y2 Three Phase Cast Iron Motor

Adopting the national uniform design ,Y2 series three - phase induction motor are conformity with IEC34 - 1. It possess sophisticated features such as new construction , good appearance , slight vibration , low noise etc.
Protection class ：IP55 or above
Insulation class ：F / H
Cooling method ：ICO141

Y2 Three Phase Cast Iron Motor Operating conditions:
Ambient temperature ： -15℃≤~≤40℃
Altitude ：not exceed 1000 m
Rated voltage ：380V or any voltage between 220V - 760V
Duty : S1 (continuous)
Connection :Star - connection for up to 3KW , delta - connection for 4KW and above

List of motor models
