Smoke Extraction Motors

Smoke Extraction Motors

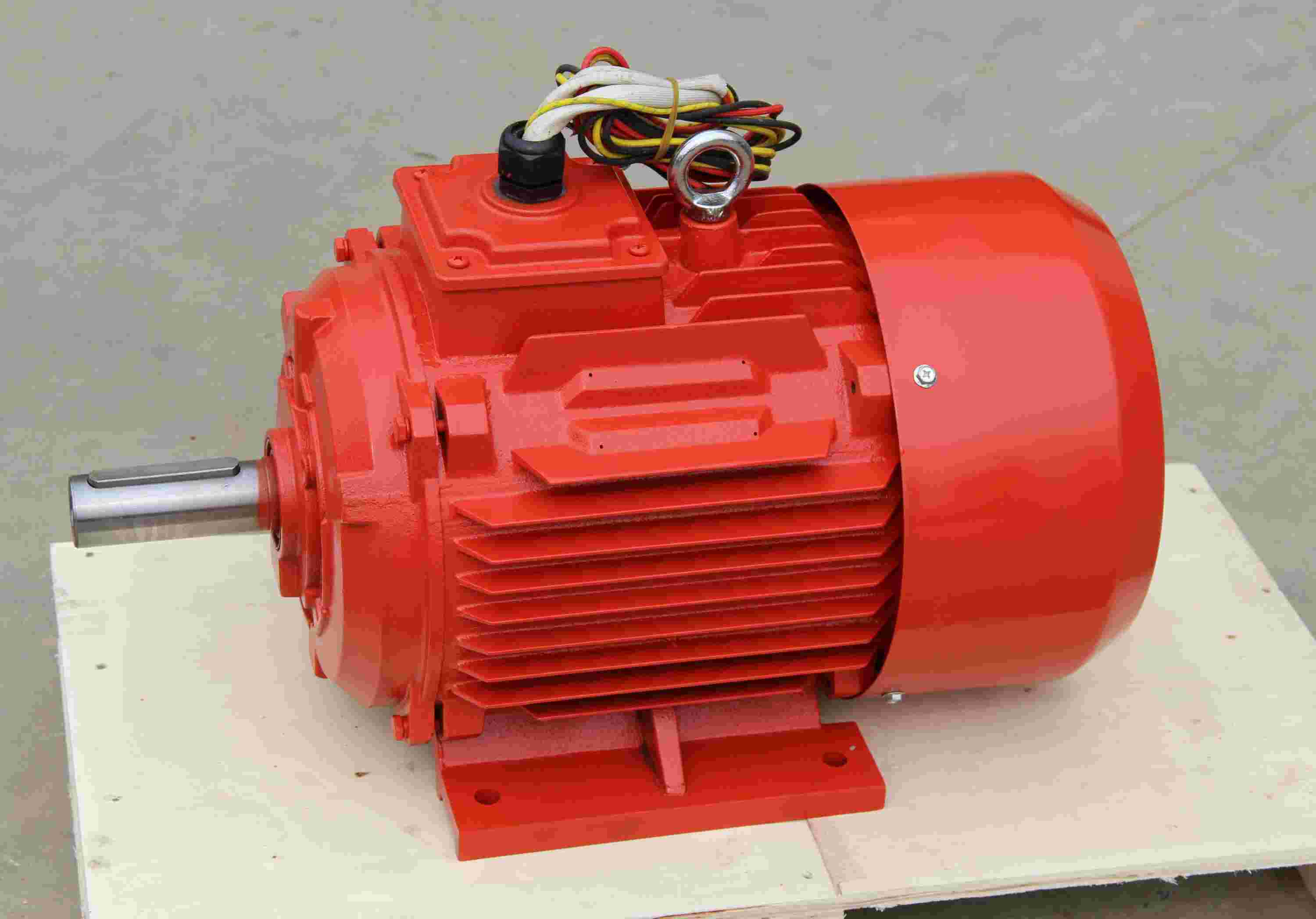

Smoke extraction motors are specialized motors designed to operate smoke extraction fans in ventilation systems, particularly in buildings, tunnels, and industrial facilities. These motors are critical for ensuring the safe removal of smoke, heat, and toxic gases during a fire, helping to maintain clear escape routes and aiding firefighting efforts.

Key Features of Smoke Extraction Motors:

1. High-Temperature Resistance:

   • Smoke extraction motors are built to withstand extreme temperatures, often up to 400°C (752°F) or higher, for a specified duration (e.g., 2 hours).

   • They are designed to operate reliably in high-heat environments during a fire.

2. Robust Construction:

   • Made from materials that resist corrosion and degradation under high temperatures.

   • Often feature insulated windings and heat-resistant coatings.

3. Compliance with Standards:

   • Must meet specific fire safety and building regulations, such as:

     • EN 12101-3 (European standard for smoke and heat control systems).

     • UL/CSA standards (North America).

   • Certified for performance under fire conditions.

4. Explosion-Proof Design:

   • In hazardous environments, smoke extraction motors may be explosion-proof to prevent ignition of flammable gases or dust.

5. Energy Efficiency:

   • Modern smoke extraction motors are designed to be energy-efficient, even though their primary purpose is for emergency use.

6. Dual-Purpose Functionality:

   • Some motors are designed for both everyday ventilation and emergency smoke extraction, switching to high-temperature operation when needed.

7. Low Maintenance:

   • Designed for long service intervals and minimal maintenance, as they are often used infrequently (only during emergencies).

Applications of Smoke Extraction Motors:

• Commercial and Residential Buildings:

  • Installed in HVAC systems to extract smoke from stairwells, corridors, and atriums during a fire.

• Industrial Facilities:

  • Used in factories, warehouses, and power plants to remove smoke and heat.

• Tunnels and Underground Structures:

  • Critical for maintaining visibility and safe evacuation routes in tunnels and subway systems.

• Parking Garages:

  • Help remove smoke and exhaust fumes in multi-level parking structures.

Types of Smoke Extraction Motors:

1. Axial Flow Motors:

   • Commonly used in axial fans for high-volume, low-pressure smoke extraction.

2. Centrifugal Motors:

   • Used in centrifugal fans for high-pressure applications, such as ducted systems.

3. Inline Motors:

   • Compact designs suitable for space-constrained installations.

Selection Criteria for Smoke Extraction Motors:

• Temperature Rating: Ensure the motor can withstand the required temperature for the specified duration.

• Airflow and Pressure Requirements: Match the motor to the fan's performance needs.

• Certifications: Verify compliance with local fire safety standards.

• Duty Cycle: Determine if the motor is for emergency-only use or dual-purpose operation.

• Environmental Conditions: Consider factors like humidity, dust, and corrosive gases.

Maintenance and Testing:

• Regular testing and maintenance are essential to ensure smoke extraction motors function correctly during an emergency.

• Inspections should include:

  • Checking electrical connections.

  • Testing motor operation under simulated conditions.

  • Verifying compliance with fire safety standards.

Smoke extraction motors are a vital component of fire safety systems, ensuring the protection of lives and property during emergencies. Proper selection, installation, and maintenance are crucial for their reliable operation.
