Three phase, MS(IE1) series Aluminium housing motors are acknowledged that having a good fame for quality and reliability, they are suitable for driving machines which do not have special requirement, such as machine tools, pumps, blowers, etc.
Frame Size (mm) :
56-160Output Power (kW) :
0.06-18.5Rated Voltage (V) :
380/400/415Frequency (Hz) :
50/60Speed (r/m) :
800/1000/1500/3000Number of Poles :
2.4.6.8Mounting :
B3.B14.B5.B34.B35Protection Class :
IP55 or aboveInsulation Class :
F or aboveTemperature Rise :

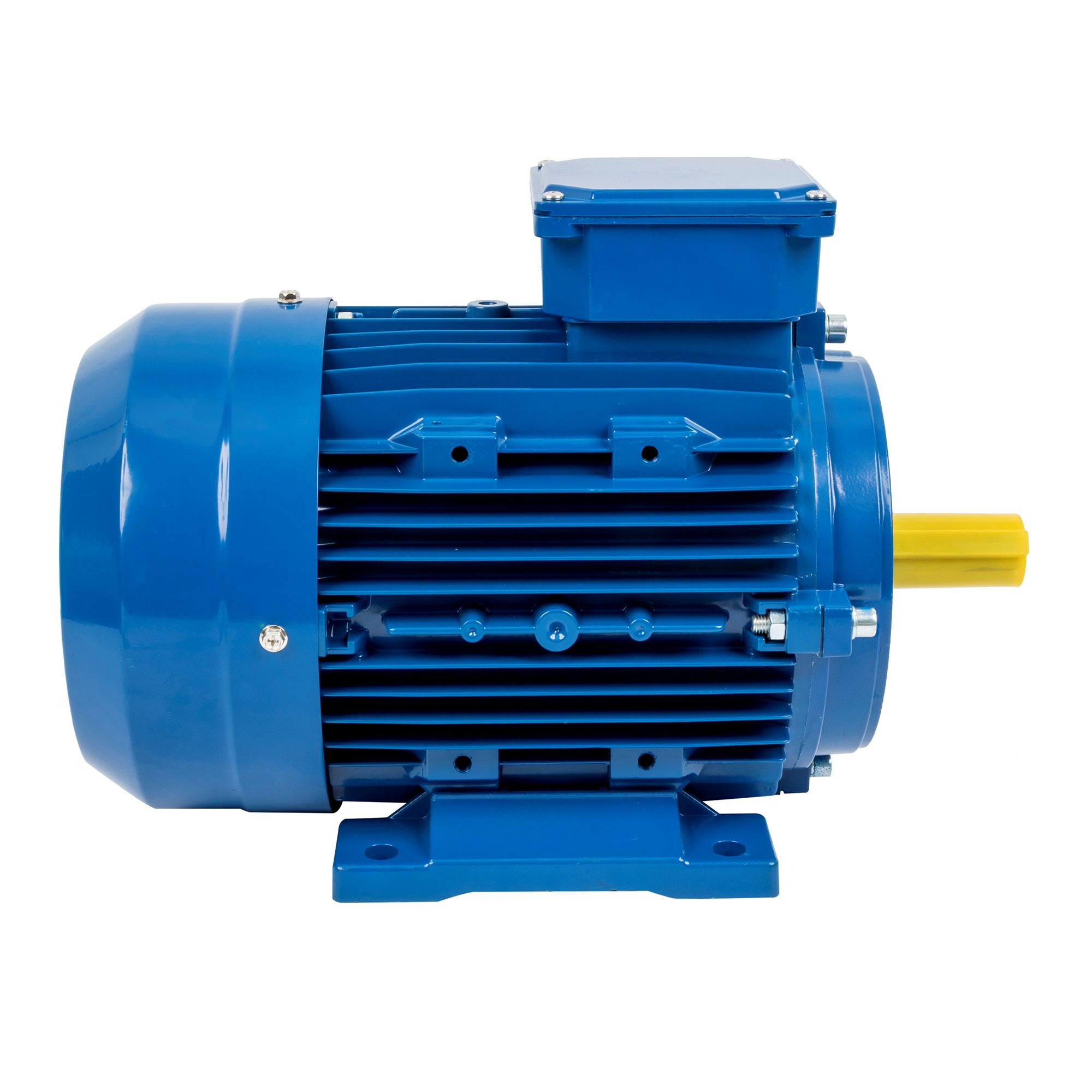

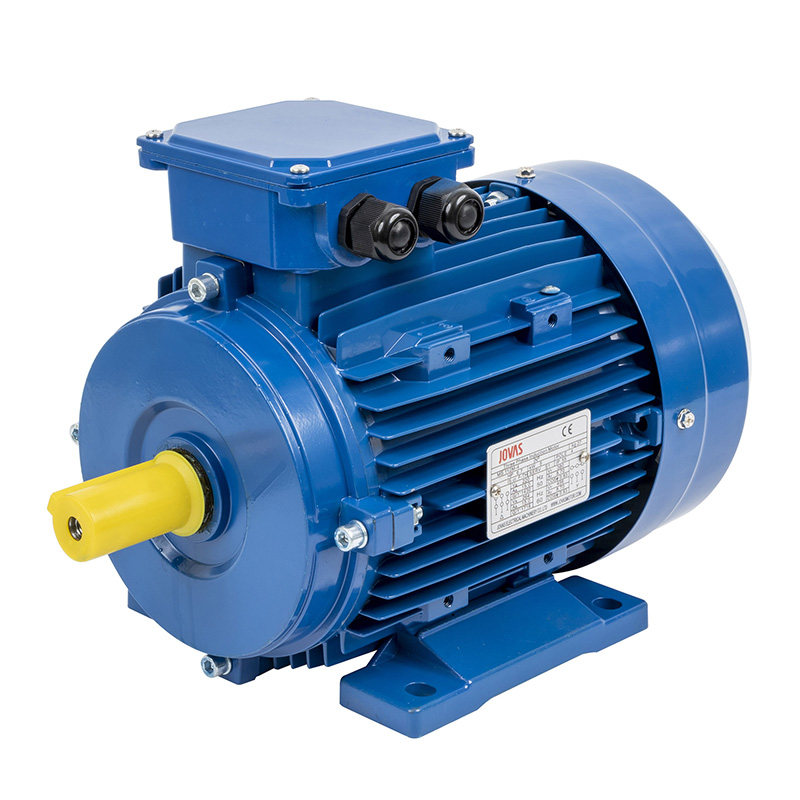

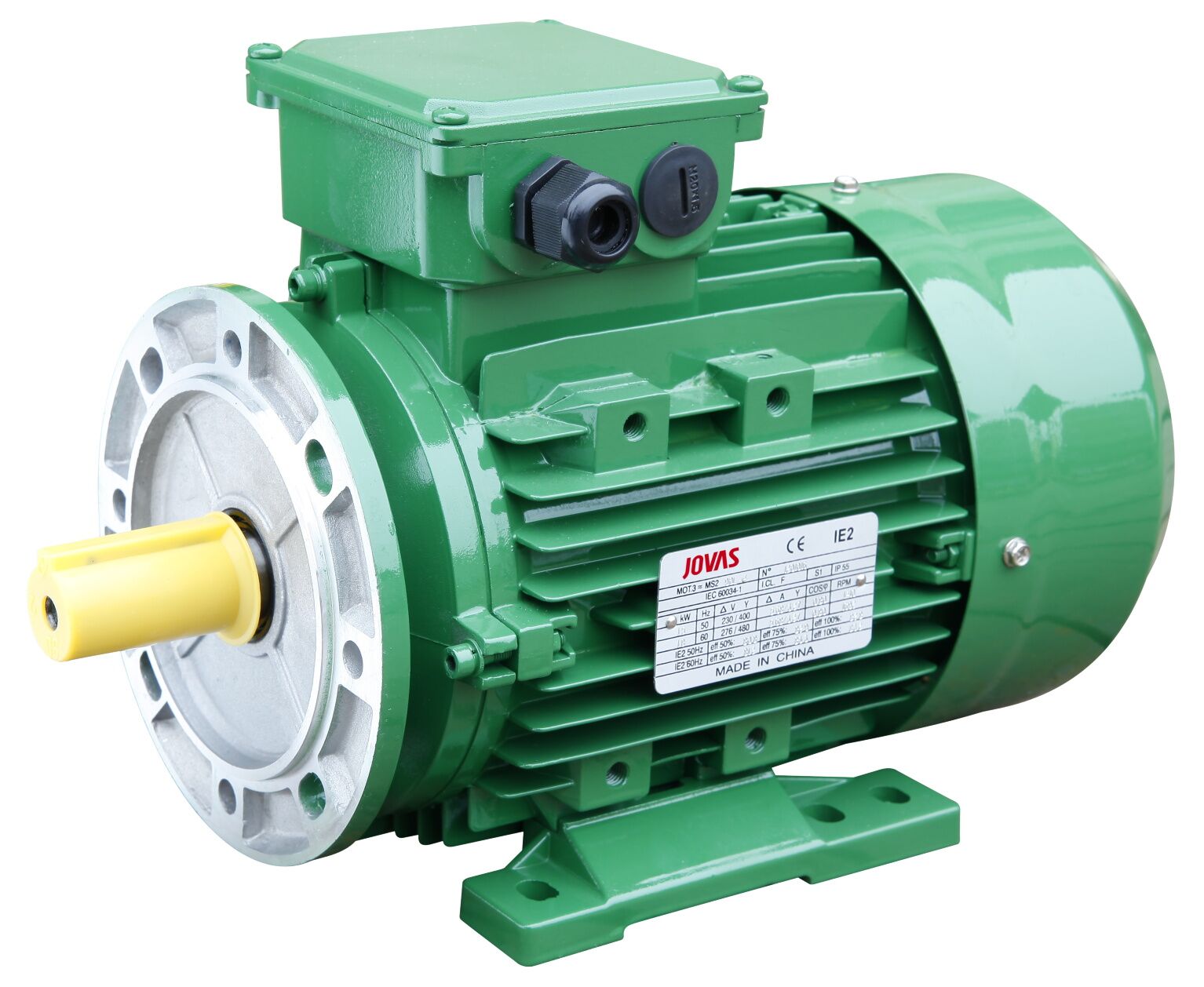

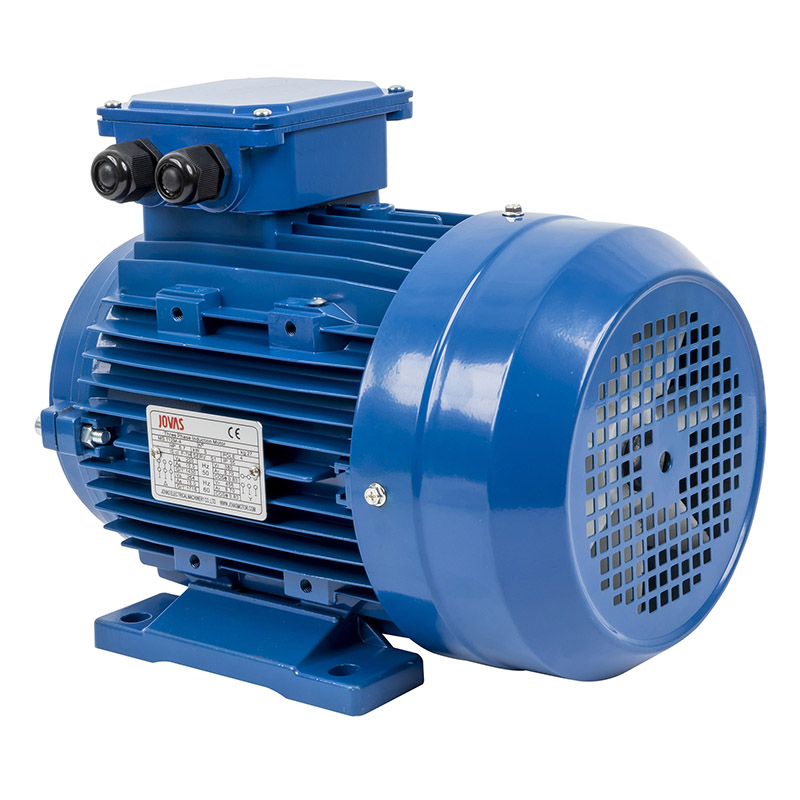

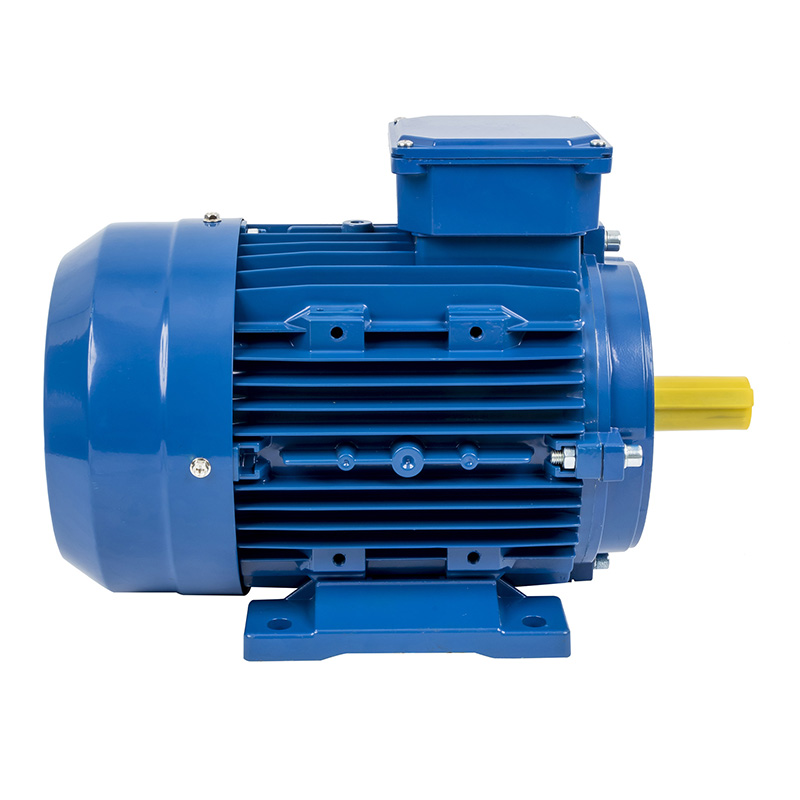

BMS(IE1) Three Phase Aluminium Housing Motor
Three phase, MS(IE1) series Aluminium housing motors are acknowledged that having a good fame for quality and reliability, that motors are suitable for driving machines which do not have special requirement, such as machine tools, pumps, blowers, etc.
- Superior finish - Externally Ventilated - Light weight construction
- Top mounted terminal box - IP55 Protection
- Interchangeable foot mounting and flange mounting
MS(IE1) series Aluminium housing motors Operating Conditions:
Ambient temperature: -15℃≤~≤40℃
Altitude: not exceed 1000m
Rated voltage: ±5%

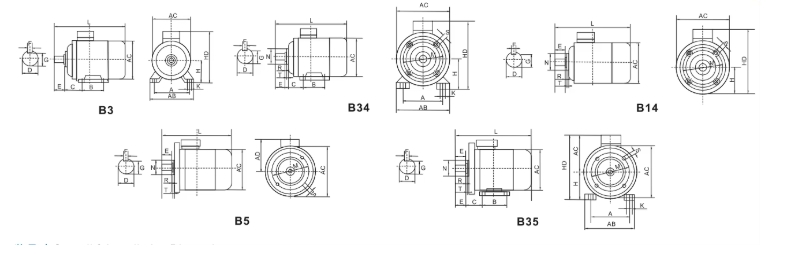

Motor mounting method
1. B3：Characteristics: Motor axis is horizontal and the base is fixed on the foundation.
2. Flange mounting (B5, B14)
B5: The motor is directly connected to the equipment through the B5 flange.
B14: The motor is directly connected to the equipment through the B14 flange.
3. Combined base and flange mounting (B35,B34): Combined base and flange mounting, the motor has both a base and a flange.
MS(IE1) series Aluminium housing motors Technical Specifications
| Name | IE1 Three Phase Aluminium housing Motor |
| Power Range | 0.06-18.5 |
| Rated voltage | ±5% |
| Frequency | 50Hz / 60Hz |
| Speed | 800rpm/1000rpm/1500rpm / 3000rpm (Available options) |
| Efficiency Class | IE1 (International Energy Efficiency Standard) |
| Protection Class | IP55 (Dust and water-resistant, suitable for harsh environments) |
| Insulation Class | F (High temperature tolerance) |
| Ambient temperature | -15℃≤~≤40℃ |
MS Three Phase Aluminium Motor Materials & Structure
Aluminium Housing: Made from high-strength aluminium alloy, offering excellent heat dissipation and ensuring stable operation under high load conditions.
Bearings: Equipped with high-quality ball bearings for smooth operation and extended lifespan.
