Three phase, MS2(IE2) series Aluminium housing motors are acknowledged that having a good fame for quality and reliability, they are suitable for driving machines which do not have special requirement, such as machine tools, pumps, blowers, etc.
Frame Size (mm) :
56-160Output Power (kW) :
0.06-18.5Rated Voltage (V) :
380/400/415Frequency (Hz) :
50/60Speed (r/m) :
800/1000/1500/3000Number of Poles :
2.4.6.8Mounting :
B3.B14.B5.B34.B35Protection Class :
IP55 or aboveInsulation Class :
F or aboveTemperature Rise :
B

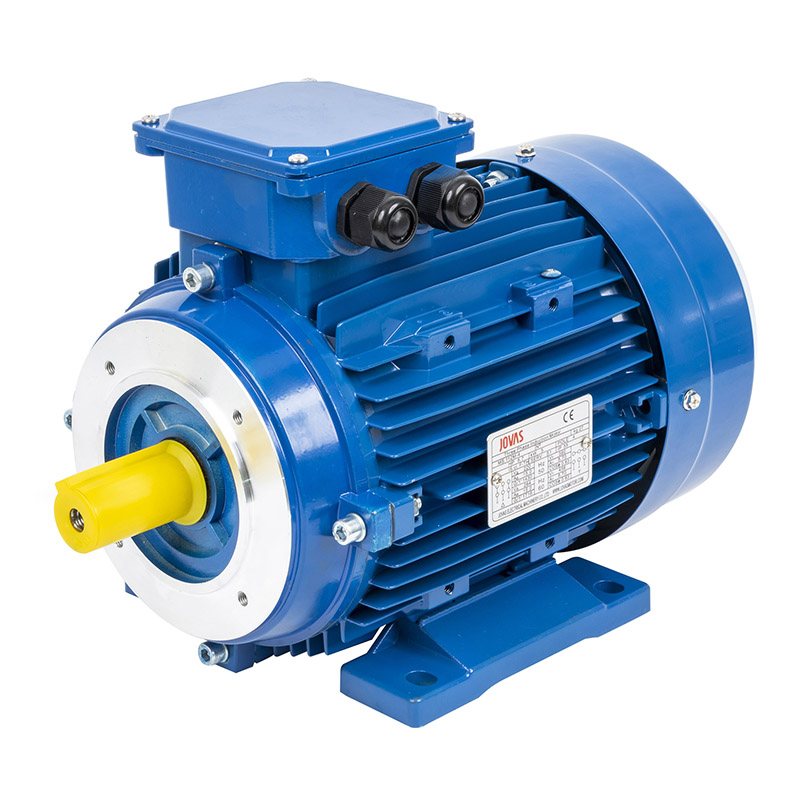

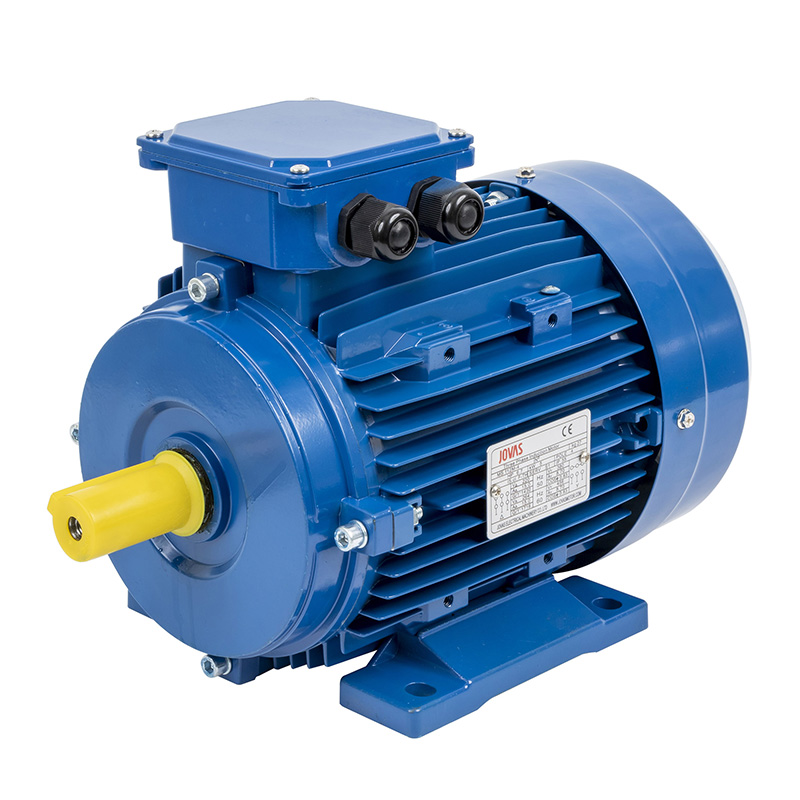

MS2(IE2) Three Phase Aluminium Housing Motor
Three phase, MS2(IE2) series Aluminium housing motors are acknowledged that having a good fame for quality and reliability, they are suitable for driving machines which do not have special requirement, such as machine tools, pumps, blowers, etc.
- Superior finish - Externally Ventilated
- Light weight construction
- Top mounted terminal box - IP55 Protection
- Interchangeable foot mounting and flange mounting
MS2(IE2) series Aluminium housing motors Operating Conditions:
Motor mounting method
1. Base mounting
·B3 (Horizontal mounting): The motor is fixed on a horizontal base by means of a foot, with the axis horizontal.
·B35 (base + flange mounting): the motor has both feet and flange, suitable for occasions requiring double fixation.
·B34 (base + flange mounting): the motor has both feet and flange, suitable for special equipment
2. Flange mounting
·B5 (flange mounting): the motor is directly connected to the equipment through the flange, with the axis horizontal.
·B14:The motor is directly connected to the equipment through the B14 flange.
.
